OpenMP/MPI hybrid parallelization

The OpenMP/MPI hybrid parallel execution can be performed by

   % mpirun -np 32 openmx DIA512-1.dat -nt 4 > dia512-1.std &


where '-nt' means the number of threads in each process managed by MPI. If '-nt' is not specified, then the number of threads is set 1, which corresponds to the pure MPI parallelization.

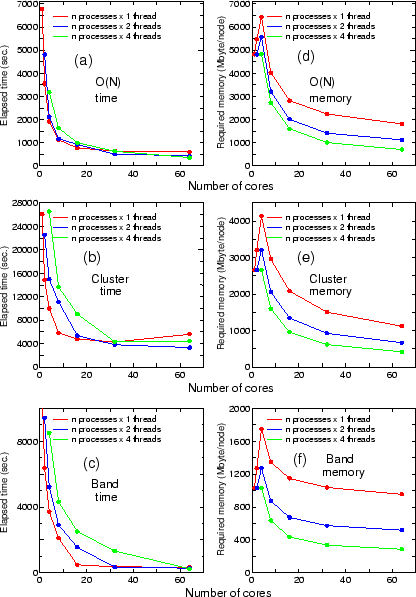

Figure: The elapsed time (sec.) and the required memory size (Mbyte) per node in calculations for (a) and (d) the O($N$) Krylov subspace, (b) and (e) the cluster, and (c) and (f) the band methods, respectively, where the number of cores is given by the number of processes by MPI times the number of threads by OpenMP. The machine used is an Opteron cluster consisting of two dual core AMD Opteron (tm) processors 2218, 2.6 GHz, with 8 Gbyte memory per node. Those nodes are connected with Gbit ether network. The input files used for those calculations are DIA512-1.dat, Mn12.dat, and DIA64_Band.dat for the O($N$) Krylov subspace, the cluster, and the band methods, respectively. They can be found in the directory 'work'.

Figure 19 shows the elapsed time (sec.) and the required memory size (Mbyte) per node in calculations for the O($N$) Krylov subspace, the cluster, and the band methods, respectively, where the number of cores is given by the number of processes by MPI times the number of threads by OpenMP. As you can see, the hybrid parallelization using 2 or 4 threads is not fast in the region using the smaller number of processes. However, the hybrid parallelization gives us the shortest elapsed time eventually as the number of processes increases. This behavior may be understood as follows: in the region using the smaller number of processes the required memory size is large enough so that cash miss easily happens. This may lead to considerable communication between processor and memory via bus. So, in the region using the smaller number of processes, the bus becomes a bottle neck in terms of elapsed time. On the other hand, in the region using the large number of processes, the required memory size is small enough that most of data can be stored in the cashes. So, the efficiency in OpenMP parallelization can be recovered. In this case, the hybrid parallelization can obtain both the benefits of MPI and OpenMP. Thus, the hybrid parallelization should be eventually efficient as the number of processes increases. In fact, our benchmark calculation may be the case. Also, it should be emphasized that the required memory size per node can be largely reduced in the hybrid parallelization in OpenMX as shown in the Fig. 19.
