Choice of the double-counting

A double-counting (dc) correction is common for any 'embedding' methods such as DFT+$U$. When using scf.DFTU.Type=2, the dc term should be specified by the following keyword:
  scf.dc.Type                 cFLL	   # sFLL|sAMF|cFLL|cAMF, default=sFLL
In the above case, the 'cFLL' dc-term is chosen. In the specification of 'sFLL', 'sAMF', 'cFLL', and 'cAMF', 'c' and 's' mean the density functional scheme within charge (spin-unpolarized) density and spin density LDA/GGA, respectively, and 'FLL' and 'AMF' correspond to a fully localized limit (FLL) and around mean-field (AMF) for the treatment of the double-counting term. For the detailed definitions and behaviors of each scheme, please refer to Ref. [21,22]. Users should keep in mind that when cFLL or cAMF dc-term is chosen, spin-density exchange-correlation energy of LDA (or GGA) is not taken into account during the SCF loop [21,22]. scf.dc.Type=sFLL corresponds to the form proposed by Liechtenstein et al. [26]. Note also that when using a simplified scheme (scf.DFTU.Type=1), sFLL dc-term is implicit in its functional form.

Users can check what kinds of DFT+$U$ scheme has been specified with the following message before SCF loop begins in the standard output:

  For scf.DFTU.Type=1,

  *******************************************************
                     DFT+U Type and DC
  *******************************************************
                scf.DFTU.Type: 1(Simplified)


  For scf.DFTU.Type=2 and scf.dc.Type=cFLL,

  *******************************************************
                     DFT+U Type and DC
  *******************************************************
       scf.DFTU.Type: 2(General)   scf.dc.Type: cFLL

As an example of the DFT+$U$ calculation, the density of states for NiO bulk is shown in Fig. 34 for cases with $U=5$ eV and two different $J$ values (0.5 and 1.0 eV) for $d$-orbitals of Ni.

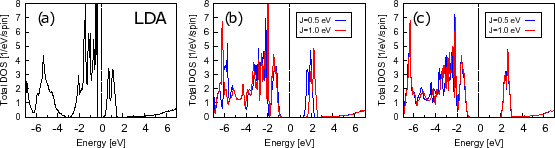

Figure 34: The up-spin density of states of NiO by (a) LDA, (b) DFT+$U$ with 'scf.dc.Type=cFLL', and (c) DFT+$U$ with 'scf.dc.Type=sFLL'. $U$ is fixed to 5 eV and $J=0.5$ eV for blue lines and 1.0 eV for red lines.
\includegraphics[width=1.0\textwidth, angle=0]{DFTU_FIG1.eps}


The input files, `NiO-cFLL.dat' and `NiO-sFLL.dat' can be found in the directory `work'. We can see that the gap increases due to the introduction of $U$ on the $d$-orbitals as well as the different behaviors of varying $J$ depending on the choice scf.dc.Type.

The occupation number for each orbital is output to the file 'System.Name.out' in the same form as that of decomposed Mulliken populations which starts from the title 'Occupation Number in LDA+U', e.g., NiO with 'scf.dc.Type=cFLL' of $U=5$ eV and $J=0.5$ eV, as follows:

***********************************************************
***********************************************************
       Occupation Number in LDA+U and Constraint DFT

    Eigenvalues and eigenvectors for a matrix consisting
           of occupation numbers on each site
***********************************************************
***********************************************************

    1   Ni

     spin= 0

  Sum =  8.708572022602

                    1       2       3       4       5       6       7       8
  Individual     -0.0041  0.0012  0.0012  0.0022  0.0040  0.0040  0.0044  0.0064

  s           0   0.1792 -0.0008 -0.0000  0.0015 -0.0000  0.0003  0.0124 -0.0000
  s           1  -0.9756  0.0052  0.0000  0.0026  0.0000 -0.0041 -0.1251  0.0000
  px          0   0.0006  0.0007 -0.0012 -0.0123  0.0003  0.0006 -0.0033 -0.0000
  py          0   0.0006 -0.0013 -0.0000 -0.0122  0.0000  0.0000 -0.0033  0.0000
  pz          0   0.0006  0.0007  0.0012 -0.0123 -0.0003  0.0006 -0.0033  0.0000
  px          1   0.0091  0.0053 -0.0095 -0.0867  0.0205  0.0152 -0.0206  0.0026
  py          1   0.0093 -0.0116 -0.0000 -0.0870 -0.0000 -0.0207 -0.0236 -0.0000
  pz          1   0.0091  0.0052  0.0095 -0.0867 -0.0205  0.0152 -0.0206 -0.0026
  d3z^2-r^2   0   0.0002  0.0348  0.0604 -0.0000 -0.0020  0.0012  0.0001 -0.0005
  dx^2-y^2    0   0.0004  0.0604 -0.0348 -0.0000  0.0011  0.0020  0.0001  0.0003
  dxy         0  -0.0001  0.0007  0.0012  0.0151  0.0367 -0.0218  0.0097 -0.0003
  dxz         0  -0.0006 -0.0015 -0.0000  0.0167  0.0000  0.0417  0.0112  0.0000
  dyz         0  -0.0001  0.0007 -0.0012  0.0151 -0.0367 -0.0218  0.0097  0.0003
  d3z^2-r^2   1  -0.0025 -0.4966 -0.8626 -0.0006  0.0295 -0.0174 -0.0006  0.0056
  dx^2-y^2    1  -0.0042 -0.8625  0.4967 -0.0010 -0.0170 -0.0301 -0.0010 -0.0033
  dxy         1   0.0136 -0.0160 -0.0276 -0.5343 -0.7016  0.4220 -0.1326  0.0055
  dxz         1   0.0225  0.0332  0.0000 -0.5657 -0.0000 -0.7918 -0.1607 -0.0000
  dyz         1   0.0136 -0.0161  0.0275 -0.5343  0.7016  0.4219 -0.1325 -0.0055
  f5z^2-3r^2  0  -0.0029  0.0032  0.0065 -0.0804 -0.0514  0.0334 -0.0282 -0.0069
  f5xz^2-xr^2 0   0.0017 -0.0304 -0.0148  0.0467 -0.0113 -0.0653  0.0174 -0.4673
  f5yz^2-yr^2 0   0.0013  0.0057 -0.0294  0.0479  0.0517  0.0341  0.0272  0.4428
  fzx^2-zy^2  0  -0.0001 -0.0360  0.0237 -0.0031 -0.0256 -0.0567  0.0001  0.5857
  fxyz        0   0.1218 -0.0003 -0.0000  0.2573  0.0000  0.0172 -0.9581  0.0000
  fx^3-3*xy^2 0  -0.0023 -0.0195 -0.0197 -0.0655  0.0563 -0.0083 -0.0223 -0.3532
  f3yx^2-y^3  0   0.0017  0.0072  0.0228  0.0618 -0.0401  0.0441  0.0352 -0.3430

                    9      10      11      12      13      14      15      16
  Individual      0.0116  0.0117  0.0207  0.0207  0.0238  0.0972  0.1112  0.1114

  s           0  -0.0003 -0.0000  0.0000 -0.0005 -0.0075 -0.0206 -0.0000 -0.0000
  s           1   0.0001  0.0000  0.0000 -0.0013  0.0076  0.0102  0.0000 -0.0000
  px          0  -0.0005  0.0006 -0.0024  0.0014  0.0043 -0.0270  0.0291  0.0170
  py          0   0.0006  0.0000  0.0000 -0.0027  0.0044 -0.0279 -0.0000 -0.0338
  pz          0  -0.0005 -0.0006  0.0024  0.0014  0.0043 -0.0270 -0.0291  0.0171
  px          1   0.0229 -0.0402  0.1442 -0.0832 -0.1073  0.5479 -0.6901 -0.4038
  py          1  -0.0437  0.0000 -0.0005  0.1632 -0.1127  0.5594  0.0003  0.7916
  pz          1   0.0229  0.0402 -0.1437 -0.0841 -0.1073  0.5478  0.6898 -0.4043
  d3z^2-r^2   0   0.0053  0.0093  0.0012  0.0006 -0.0001  0.0003 -0.0202  0.0115
  dx^2-y^2    0   0.0092 -0.0053 -0.0007  0.0011 -0.0002  0.0006  0.0117  0.0199
  dxy         0  -0.0033 -0.0056 -0.0049 -0.0032 -0.0237  0.0916  0.0095 -0.0067
  dxz         0   0.0069 -0.0000 -0.0000  0.0054 -0.0236  0.0915  0.0000  0.0102
  dyz         0  -0.0033  0.0056  0.0049 -0.0031 -0.0237  0.0916 -0.0095 -0.0067
  d3z^2-r^2   1  -0.0241 -0.0404 -0.0230 -0.0138  0.0011 -0.0001  0.0089 -0.0052
  dx^2-y^2    1  -0.0418  0.0233  0.0134 -0.0238  0.0018 -0.0002 -0.0051 -0.0090
  dxy         1   0.0224  0.0367  0.0645  0.0399  0.1012 -0.0657 -0.0086  0.0058
  dxz         1  -0.0489  0.0000  0.0002 -0.0737  0.1010 -0.0652 -0.0000 -0.0096
  dyz         1   0.0224 -0.0367 -0.0648  0.0395  0.1011 -0.0657  0.0086  0.0058
  f5z^2-3r^2  0   0.0928  0.1648 -0.6676 -0.3997 -0.5498 -0.1226 -0.1505  0.0868
  f5xz^2-xr^2 0   0.4854  0.4030 -0.3328  0.3674  0.3359  0.0744 -0.0944 -0.0506
  f5yz^2-yr^2 0   0.1112  0.6352  0.1497 -0.4674  0.3502  0.0772 -0.0023  0.1046
  fzx^2-zy^2  0   0.6859 -0.3821 -0.0991  0.1577 -0.0010 -0.0008  0.0028  0.0032
  fxyz        0   0.0052  0.0000  0.0000 -0.0109  0.0195  0.0064  0.0000  0.0007
  fx^3-3*xy^2 0   0.4934  0.1037  0.5899 -0.2158 -0.4352 -0.0974  0.1173  0.0705
  f3yx^2-y^3  0   0.1435 -0.4920 -0.1130 -0.6043  0.4520  0.0997  0.0019  0.1351

                   17      18      19      20      21      22      23      24
  Individual      0.2342  0.9866  0.9949  0.9950  1.0070  1.0070  1.0101  1.0101

  s           0   0.9835 -0.0030 -0.0001  0.0000 -0.0000  0.0001  0.0003  0.0000
  s           1   0.1796 -0.0015 -0.0000  0.0000  0.0000 -0.0000 -0.0000 -0.0000
  px          0  -0.0023 -0.5138 -0.3934 -0.6753 -0.0494 -0.0317  0.1133 -0.2016
  py          0  -0.0021 -0.5218  0.7787 -0.0000 -0.0000  0.0587 -0.2264 -0.0000
  pz          0  -0.0023 -0.5138 -0.3933  0.6753  0.0494 -0.0317  0.1132  0.2017
  px          1   0.0092 -0.0625 -0.0195 -0.0329  0.0012  0.0006 -0.0049  0.0083
  py          1   0.0095 -0.0631  0.0376 -0.0000  0.0000 -0.0016  0.0097  0.0000
  pz          1   0.0092 -0.0625 -0.0195  0.0329 -0.0012  0.0006 -0.0049 -0.0083
  .....
  ...
The eigenvalues of the occupation number matrix of each atomic site correspond to the occupation number to each local state given by the eigenvector.
