GridCalc: Calculation on a k-point grid

'kSpin' has four ways to calculate the k-space spin density matrix, which can be specified by a keyword 'Calc.Type'. Here we introduce GridCalc among the four ways. GridCalc can calculate the spin textures/k-space spin density matrix on a given k-point grid for each band within a user-specified energy range. You can also specify bands to calculate instead of specifying an energy range. The calculation of spin textures using GridCalc is illustrated here with a simple model of an Au(111) surface.

After a calculation of OpenMX with an input file 'Au111Surface_GC.dat' stored in the directory 'work', you may try to run 'kSpin'. The keywords relevant to the executation of kSpin can be found at the bottom of the input file 'Au111Surface_GC.dat' stored in the directory 'work' as shown below:

List of keywords relevant to kSpin

    Filename.scfout      Au111Surface.scfout
    Filename.outdata     Au111Surface_GL
    Calc.Type            GridCalc          # FermiLoop, GridCalc,
                                             BandDispersion, or MulPOnly
                                             default: MulPOnly
    Energy.Range        -1.0  1.0          # eV; default: 0.0  0.0
    Search.kCentral      0.0  0.0  0.0     # default: 0.0  0.0  0.0
    Calc.Type.3mesh      2                 # default: 1
    kRange.3mesh         0.5  0.5          # default: 0.5  0.5
    k-plane.1stStep      14 14             # default: 2 2
    Calc.Bandbyband      Off               # default: Off
    Calc.Band.Min        55
    Calc.Band.Max        56
    MulP.Vec.Scale       0.1  0.1  0.1     # default: 1.0  1.0  1.0

Specification of keywords

Although the keywords above are the same as for the case of FermiLoop, for user's convenience the specification of each keyword is explained with emphasis on GridCalc below. Note that the behavier of the keyword 'Enery.Range' is different from that in FermiLoop.

Filename.scfout
Specify the name of the scfout file which will be read by 'kSpin'.

Filename.outdata
Specify a name for output files. This keyword corresponds to the keyword 'System.Name' for OpenMX calculations.

Calc.Type
Choose either FermiLoop, GridCalc, BandDispersion, or MulPOnly. The default setting is MulPOnly. Here we choose GridCalc for the exercise.

Energy.Range
Specify the two different values for an energy range for which GridCalc should search bands. The unit is in eV. This keyword should be valid when the keyword 'Calc.Bandbyband' is 'OFF' (cf. Calc.Bandbyband). The default is '-0.5 0.5' (i.e. the range is [-0.5, 0.5]).

Search.kCentral
Specify a set of three values for the central k-point around which GridCalc should search k-points on the specified energy range (i.e. values for the keyword 'Energy.Range'). The notation to specify the k-point follows the keyword 'Band.kpath'. The default is '0.0 0.0 0.0' (i.e. $\Gamma $-point).

Calc.Type.3mesh
Specify a plane on which the spin texture is calculated. Set a value '1', '2', and '3', for the case of $k_ak_b$-, $k_bk_c$-, and $k_ck_a$-planes, respectively. The default is '1'.

kRange.3mesh
Specify two values for a two-dimensional domain in the reciprocal space where k-points should be calculated. For example, if the value for the keyword 'Calc.Type.3mesh' is '1' ($k_ak_b$-plane), values '0.2 0.3' specifies a domain: $-0.2\leq k_a\leq 0.2$, $-0.3 \leq k_b \leq 0.3$. The notation of the k-points follows the keyword 'Band.kpath'. The default is '0.5 0.5' (i.e. the whole of the first brillouin zone).

k-plane.1stStep
Specify the number of grid points to divide the domain by the keyword 'kRange.3mesh' for the first search. For example, if the value for the keyword 'Calc.Type.3mesh' is '1' ($k_ak_b$-plane), values '2 3' specifies the number of grid points as follows: 2 for $k_a$-axis, 3 for $k_b$-axis. The default is '2 2'.

Calc.Bandbyband
Specify if GridCalc should calculate given bands (ON) or not (OFF). (cf. Calc.BandMin; Calc.BandMax). The default is 'OFF'.

Calc.BandMin
Set the lower limit on the range for bands to calculate by specifying the band index. This keyword is valid when the value for the keyword 'Calc.Bandbyband' is 'ON' (cf. Calc.Bandbyband; Calc.BandMax). You can see band indices using OMXTool [146] or 53.4 BandDispersion.

Calc.BandMax
Set the upper limit on the range for bands to calculate by specifying the band index. This keyword is valid when the value for the keyword 'Calc.Bandbyband' is 'ON' (cf. Calc.Bandbyband; Calc.BandMin). You can see band indices using OMXTool [146] or 53.4 BandDispersion.

MulP.Vec.Scale
Specify a scale to draw vectors expressing the spin texture. For example, values '0.1 0.2 0.3' specifies the scale as follows: 0.1 for x-axis, 0.2 for y-axis, 0.3 for z-axis. This keyword affects only 'XXXXX.Pxyz_YY' (XXXXX = the value for the keyword 'Filename.outdata'; YY = the band index). The default is '1.0 1.0 1.0'.

Calculation

The spin texture/k-space spin density matrix are calculated by a post-processing code 'kSpin' in the directory 'work'. Then, please move to the directory 'work', and perform a calculation as follows:

    % ./kSpin Au111Surface_GC.dat
or for the MPI calculation, for example, the case with 4 MPI processes
    % mpirun -np 4 ./kSpin Au111Surface_GC.dat

As the calculation proceeds, you may see the following standard output:

    ******************************************************************
    ******************************************************************
     kSpin:
     code for evaluating spin related properties
     in momentum space of solid state materials.
     Copyright (C), 2019,
     Hiroki Kotaka, Naoya Yamaguchi and Fumiyuki Ishii.
     This software includes the work that is distributed
     in version 3 of the GPL (GPLv3).

     Please cite the following article:
     H. Kotaka, F. Ishii, and M. Saito,
     Jpn. J. Appl. Phys. 52, 035204 (2013).
     DOI: 10.7567/JJAP.52.035204.
    ******************************************************************
    ******************************************************************


    Input filename is "Au111Surface.scfout"


    Start "GridCalc" Calculation (4).

    ########### ORBITAL DATA ##################
    ClaOrb_MAX[0]:   2
    ClaOrb_MAX[1]:   8
    Total Band (2*n): 124
    Central (  0.000000   0.000000   0.000000)
    ###########################################

    ########### EIGEN VALUE ###################
    The number of BANDs    8 (  49->  56)
    Total MulP data:1568
    ###########################################

    ############ CALC TIME ####################
      Total Calculation Time:  3.656405 (s)
            Eigen Value Calc:  3.498849 (s)
    ###########################################
    ############ CALC TIME ####################
      Total Calculation Time:  3.670708 (s)
    ###########################################

When the calculation is completed normally as shown above, you can find the following output files in the directory 'work':

    Au111Surface_GC.EigenMap_49
    Au111Surface_GC.Pxyz_49
    Au111Surface_GC.plotexample_49
    Au111Surface_GC.EigenMap_50
    Au111Surface_GC.Pxyz_50
    Au111Surface_GC.plotexample_50
    Au111Surface_GC.EigenMap_51
    Au111Surface_GC.Pxyz_51
    Au111Surface_GC.plotexample_51
    Au111Surface_GC.EigenMap_52
    Au111Surface_GC.Pxyz_52
    Au111Surface_GC.plotexample_52
    Au111Surface_GC.EigenMap_53
    Au111Surface_GC.Pxyz_53
    Au111Surface_GC.plotexample_53
    Au111Surface_GC.EigenMap_54
    Au111Surface_GC.Pxyz_54
    Au111Surface_GC.plotexample_54
    Au111Surface_GC.EigenMap_55
    Au111Surface_GC.Pxyz_55
    Au111Surface_GC.plotexample_55
    Au111Surface_GC.EigenMap_56
    Au111Surface_GC.Pxyz_56
    Au111Surface_GC.plotexample_56
    Au111Surface_GC.AtomMulP
    Au111Surface_GC.MulP_s
    Au111Surface_GC.MulP_p
    Au111Surface_GC.MulP_p1
    Au111Surface_GC.MulP_p2
    Au111Surface_GC.MulP_p3
    Au111Surface_GC.MulP_d
    Au111Surface_GC.MulP_d1
    Au111Surface_GC.MulP_d2
    Au111Surface_GC.MulP_d3
    Au111Surface_GC.MulP_d4
    Au111Surface_GC.MulP_d5
    Au111Surface_GC.atominfo
    temporal_12345.input
As an example, by executing the following command, you can obtain figures of the spin texture for the Rashba spin splitting in the Au(111) surface as shown in Figs. 66(a) and (b). which exhibit the typical Rashba-type spin texture.
    % gnuplot Au111Surface_GC.plotexample_55
    % gnuplot Au111Surface_GC.plotexample_56

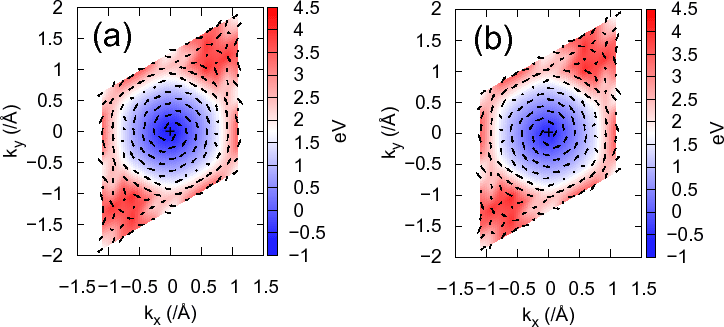

Figure 66: Spin texture for the band with (a) the band indice 55 and (b) 56 in the Rashba spin splitting around $\Gamma $-point at the Au(111) surface. The vectors represent the expectation values of the Pauli matrices vectors at each k-point stored in a Pxyz_YY file 'Au111Surface_GC.Pxyz_55' and 'Au111Surface_GC.Pxyz_56', respectively. The color maps represent the height in energy at each k-point stored in an EigenMap_YY file 'Au111Surface_GC.EigenMap_55' and 'Au111Surface_GC.EigenMap_56', respectively. The central cross point corresponds to $\Gamma $-point. You can get thes figures by plotexample_YY files 'Au111Surface_GC.plotexample_55' and 'Au111Surface_GC.plotexample_56'.
\includegraphics[width=16.0cm]{Rashba-Fig3.eps}


Output files

The content of each output file is explained below:

EigenMap_YY file
This file stores a grid data for the band with the band index YY. The first, second, and third columns correspond to the $k_x$, $k_y$, and $k_z$ components of the k-points in units of Bohr$^{-1}$, respectively. The fourth column corresponds to the energy in units of eV.

Pxyz_YY file
This file stores data of the expectation value of the Pauli matrices vectors for each k-point stored in the FermiSurf_YY file. The first, second, and third columns correspond to the $k_x$, $k_y$, and $k_z$ component of the k-points in units of Bohr$^{-1}$, respectively. The fourth, fifth, and sixth columns correspond to the expectation value of the $\sigma_x$, $\sigma_y$, and $\sigma_z$ in units of the Bohr magneton, respectively.

AtomMulP file
This file stores data of the k-space spin density matrix resolved to the atomic contribution, which can be analyzed by 53.6 MulPCalc.

MulP_xx file
This file stores data of the xx-component of the k-space spin density matrix resolved to the atomic contribution, and can be analyzed by 53.6 MulPCalc.

plotexample file
This file supplies an example of gnuplot scripts.

atominfo file
This file supplies information of lattice vectors and PAOs.

temporal_12345.input
This file is a copy of the input file stored in the scfout file.

(Optional) Analysis of the k-space spin density matrix

MulPCalc can extract data to analyze the k-space spin density matrix from AtomMulP files or MulP_xx files. You can find an example of input files for MulPCalc at the bottom of an input file 'Au111Surface_GC.dat' and proceed to the analysis of the k-space spin density matrix after the above calculation as follows:

    % ./MulPCalc Au111Surface_GC.dat
For more information of MulPCalc, see also the subsection of 53.6 MulPCalc.
