Convergence

The computational effort and accuracy depend on the cutoff energy, which is controlled by the keyword 'scf.energycutoff', for the numerical integrations and the solution of Poisson's equation [24]. Figure 4 shows the convergence property of the total energy of a methane molecule with respect to the cutoff energy, where the input file is Methane.dat used in the Section 'Input file'. Since the cutoff energy is not for basis set, but for the numerical integrations, the total energy does not have to converge from the upper energy region with respect to the cutoff energy like that of plane wave basis set. In most cases, the cutoff energy of 150-200 Ryd is an optimum choice. However, it should be noted that there is a subtle problem which requires the cutoff energy more than 300-500 Ryd. Calculations of a very flat potential minimum and a small energy difference among different spin orders could be such a subtle problem.

Structural parameters and the dipole moment of a water molecule, calculated with a different cutoff energy, are shown in Table 1, where the input file was H2O.dat in the directory 'work'. The fully convergent result is obtained using around 150 Ryd. Although a sufficient cutoff energy depends on elements, 150-200 Ryd might be enough to achieve the convergence for most cases. However, we recommend that you would check the convergence of total energy for your systems. For the other cutoff energy, 1DFFT.EnergyCutoff, we commonly use 3600 (Ryd) which is quite enough for the convergence with no high computational demands.

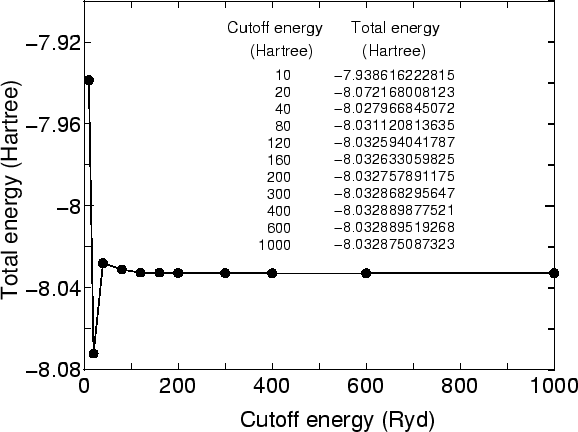

Figure 4: Convergence property of the total energy of a methane molecule with respect to cutoff energy

Table 1: Convergence properties of structural parameters, dipole moment of a water molecule with respect to cutoff energy. The input file is H2O.dat in the directory 'work'.

Ecut(Ryd)	r(H-O) (Å)	$\angle$ (H-O-H) (deg)	Dipole moment (Debye)
60	0.971	105.1	1.849
90	0.971	104.7	1.855
120	0.971	104.7	1.856
150	0.971	104.7	1.856
180	0.971	104.7	1.856
Exp.	0.957	104.5	1.85
