Examples

As an example of the cluster case, using an input file 'Fe_Cluster_jx.dat' which is stored in the directory 'work', you can first perform a conventional calculation using 'openmx' as

     % mpirun -np 2 ./openmx Fe_Cluster_jx.dat

The input file 'Fe_Cluster_jx.dat' is for the SCF calculation of a iron dimer. After finishing the calculation normally, you can obtain a scfout file 'Fe_Cluster_jx.scfout'. Then the calculation by 'jx' is performed as

     % ./jx Fe_Cluster_jx.scfout jx_cluster.config

where 'jx_cluster.config' is also available in the directory 'work'. Then, you may see the following message on your screen.

     ********************************************************************
     ********************************************************************
      jx: code for calculating an effective exchange coupling constant J
      Copyright (C), 2003, Myung Joon Han, Jaejun Yu, and Taisuke Ozaki
                     2019, Asako Terasawa and Taisuke Ozaki
      This is free software, and you are welcome to
      redistribute it under the constitution of the GNU-GPL.
     ********************************************************************
     ********************************************************************

     Read the scfout file (Fe_Cluster_jx.scfout)
     ***
     The file format of the SCFOUT file:  3
     And it supports the following functions:
     - jx
     - polB
     - kSpin
     - Z2FH
     - calB
     ***

      Previous eigenvalue solver = Cluster
      atomnum                    = 2
      ChemP                      = -0.089740215968 (Hartree)
      E_Temp                     = 300.000000000000 (K)

     Evaluation of J based on cluster calculation

         i     j            J [meV]            J [mRy]
     -------------------------------------------------
         1     1   1591.520791120630    116.974621661729
         1     2    106.511867492210      7.828477938772
         2     2   1591.520746009061    116.974618346089

      Elapsed time = 0.036225 (s)

The exchange coupling constant $J_{12}$ between atoms 1 and 2 is calculated to be 106.5 meV.

As an example of the bulk case, you can perform a conventional calculation using 'openmx' and an input file 'Fe_Bulk_jx.dat' available in the directory 'work' as

     % mpirun -np 28 ./openmx Fe_Bulk_jx.dat

The input file 'Fe_Bulk_jx.dat' is for the SCF calculation of a BCC iron. After finishing the calculation normally, you can obtain a scfout file 'Fe_Bulk_jx.scfout'. Then the calculation by 'jx' is performed as

     % mpirun -np 112 ./jx Fe_Bulk_jx.scfout Fe_Bulk_jx.config | tee jx.log

where 'Fe_Bulk_jx.config' is available in the directory 'work'. Then, you may see the following message on your screen.

   ********************************************************************
   ********************************************************************
    jx: code for calculating an effective exchange coupling constant J
    Copyright (C), 2003, Myung Joon Han, Jaejun Yu, and Taisuke Ozaki
                   2019, Asako Terasawa and Taisuke Ozaki
    This is free software, and you are welcome to
    redistribute it under the constitution of the GNU-GPL.
   ********************************************************************
   ********************************************************************

   Read the scfout file (Fe_Bulk_jx.scfout)
   ***
   The file format of the SCFOUT file:  3
   And it supports the following functions:
   - jx
   - polB
   - kSpin
   - Z2FH
   - calB
   ***

    Previous eigenvalue solver = Band
    atomnum                    = 2
    ChemP                      = -0.205912787451 (Hartree)
    E_Temp                     = 300.000000000000 (K)

    Jij calculation for a periodic structure
      Number of k-grids: 27 27 27
      flag_periodic_sum = 0: coupling between site i at cell 0 and site j at cell R
        Number of poles of Fermi-Dirac continued fraction (PRB.75.035123): 60

       i     j    c1    c2    c3            J [meV]            J [mRy]   time_eig [s] ...
   ---------------------------------------------------------------------------------- ...
       1     1    -2    -2    -2    -0.845809571401    -0.062165857439        0.51534 ...
       1     1    -2    -2    -1     0.274300677331     0.020160728111        0.00000 ...
       1     1    -2    -2     0     0.036006012552     0.002646393135        0.00000 ...
       1     1    -2    -2     1     0.274300705154     0.020160730156        0.00000 ...
       1     1    -2    -2     2    -0.845809596417    -0.062165859278        0.00000 ...
       1     1    -2    -1    -2     0.274300737539     0.020160732536        0.00000 ...
       1     1    -2    -1    -1    -0.206315672897    -0.015163922403        0.00000 ...
       1     1    -2    -1     0     0.149714301525     0.011003798302        0.00000 ...
       1     1    -2    -1     1    -0.206315540488    -0.015163912672        0.00000 ...
       1     1    -2    -1     2     0.274300804604     0.020160737465        0.00000 ...
       ...
       ..
       2     2     0    -1     2     0.149714016159     0.011003777328        0.00000 ...
       2     2     0     0    -2     0.401809366424     0.029532443987        0.00000 ...
       2     2     0     0    -1    11.452192349598     0.841720620155        0.00000 ...

    Elapsed time = 340.817975 (s)

In Fig. 38 (a), the obtained exchange coupling constant

for the bcc Fe is plotted as a function of distance as well as cases of (b) hcp Co, (c) fcc Ni, and (d) Fe dimer. In all the calculations, basis sets of A6.0H-s2p2d2 (A=Fe, Ni, Co), exchange correlation functions of GGA-PBE, and ferromagnetic spin configurations are adopted. The input files used for the calculations are Fe_Bulk_jx.(dat,config), Co_Bulk_jx.(dat,config), Ni_Bulk_jx.(dat,config), and Fe_Cluster_jx.(dat,config) which are all available in the directory 'work'. The details of the calculations can be found in Ref. [19].

It is also possible to calculate the Curie temperature of periodic systems from calculated exchange coupling constants and the mean field approximation. That is, the Curie temperature $T_{\mathrm{C}}$ of general periodic system can be obtained as the maximum eigenvalue of the following eigenvalue equation:

$\displaystyle T\langle\vec{s}_{i}\rangle_{z}$	$\textstyle =$	$\displaystyle \frac{2}{3 k_{\mathrm{B}}}\sum_{j}\tilde{J}_{ij}\langle\vec{s}_{j}\rangle_{z}$	(9)
$\displaystyle \tilde{J}_{ij}$	$\textstyle \equiv$	$\displaystyle J_{ij}-J_{i\mathbf{0},j\mathbf{0}}\delta_{ij}.$	(10)

Here, the definitions of $J_{ij}$ and $J_{i\mathbf{0},j\mathbf{0}}$ are found in Eqs. (5) and (8), respectively. Table 8 shows the calculated Curie temperature by Eq. (9) for the bcc Fe, hcp Co, and fcc Ni together with the experimental values.

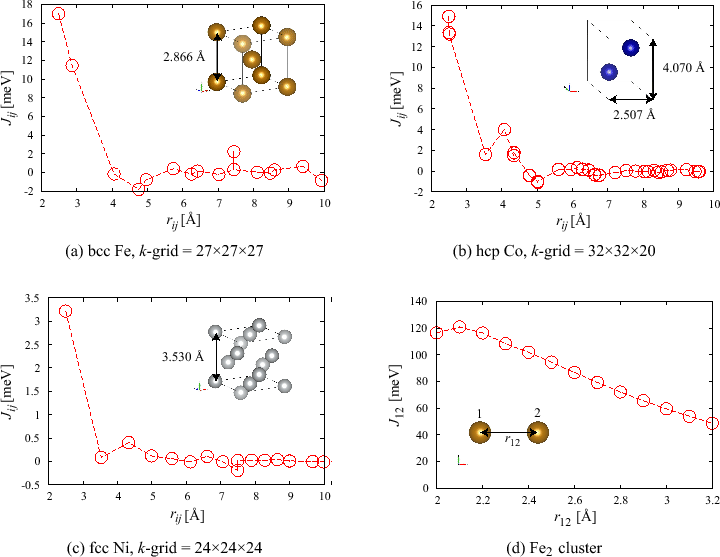

**Figure 38:** Calculated exchange coupling constants for (a) bcc Fe, (b) hcp Co, (c) fcc Ni, and (d) Fe dimer as a function of distance. The input files used for the calculations are Fe_Bulk_jx.(dat,config), Co_Bulk_jx.(dat,config), Ni_Bulk_jx.(dat,config), and Fe_Cluster_jx.(dat,config) which are all available in the directory 'work'.
$\includegraphics[width=160mm]{jx_examples.eps}$

Table 8: The calculated Curie temperature from exchange coupling constants and mean field approximation for bcc Fe, hcp Co and fcc Ni together with their experimental values.

	$T_\mathrm{C}$ [K]
System	calculated	experimental
bcc Fe	1321	1040
hcp Co	1640	1131
fcc Ni	445	627
